Your business, dry and under cover!

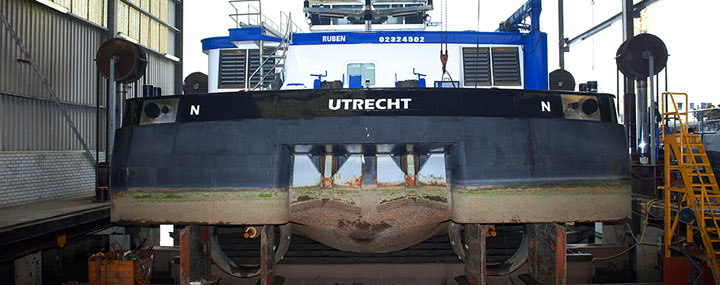

Ship Lift No. 2 is our eye catcher at the Beatrixhaven. Inside this lofty building and out of the wind and rain we can give our full attention to your ship. This lift features a berth width of no less than 15 metres. Vessels up to about 20 metres long are lifted straight up, high and dry. That includes ships with a keel, which are securely moored to the removable spud poles. The lift is also eminently suitable for river barges or coasters up to 15 metres beam and 150 metres in length. With its four heavy hydraulic cylinders and eight steel cables as thick as a fist, we can haul up practically any ship. And that includes super yachts.
Specifications
Location:
Beatrixhaven, Werkendam
Berth width:
15.00 m
Berth depth:
NAP -/- 2.85 m
Suitable for:
Ships up to 15.00 m beam and 150 m long
Lifting Capacity:
540 tonnes net
Lifting cylinders:
4 × 360 mm dia. piston
Lifting Floor:
1000 mm high
Lifting options:
Self-adjusting angle or straight up
{kolom col-md-6}
Steel cables:
8 steel cables, 71 mm dia.
Electric power:
2 × 33 kW, intermittent
Control:
Computer-controlled PLC programme
Work floor:
Platform hydraulically moveable in four directions
Cranes:
Gantry crane, 2 × 3 tonnes
Deck access:
Mechanically adjustable stairs system
Certification:
Fully Keboma certified
Winches:
Scaffolding fitted with electric hauling winches
